BL8250M400
Low speed with high torque
Stand Mixer MotorMilkshake Machine MotorBread Machine MotorHigh Speed Commercial Blender MotorIce Maker Motor

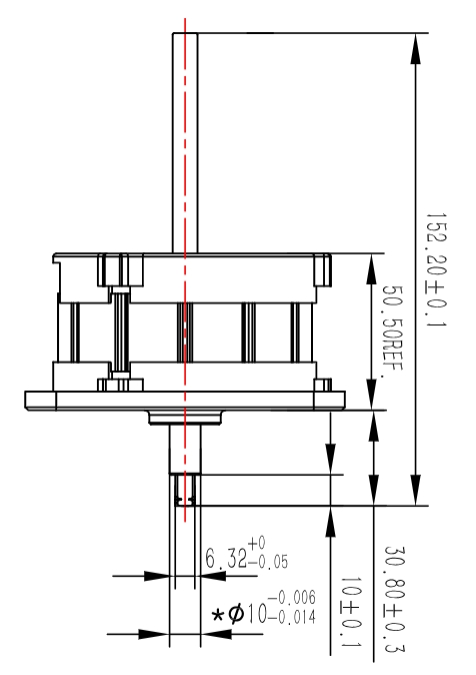

Drawings:
Description
In such cases, CJC's high-performance BLDC motors are appropriate for your products:
You are looking for motors with fast and stable responses when starting and stopping a machine.
Your projects output higher power and run significantly wider speed and torque.
BL8225 is mainly used in household appliances such as commercial blenders, low speed juicers, and direct drive robot for household and commercial use.
Please consider the following requirements before requesting customization: motor size, controller, motor ratings, gearbox(if any), or other significant factors.
The following parameters for your reference, we could customize motor for your applications.
Parameters
- Rated VoltageDC 400V
- Rated Current12A
- Rated Power390W
- Rated Speed15000±10% RPM
- No Load Current2A MAX
- No Load Speed22000±10% RPM
- Torque1.5 mN.m/N.m
- Length103 mm
- With ControllerYES
Application
