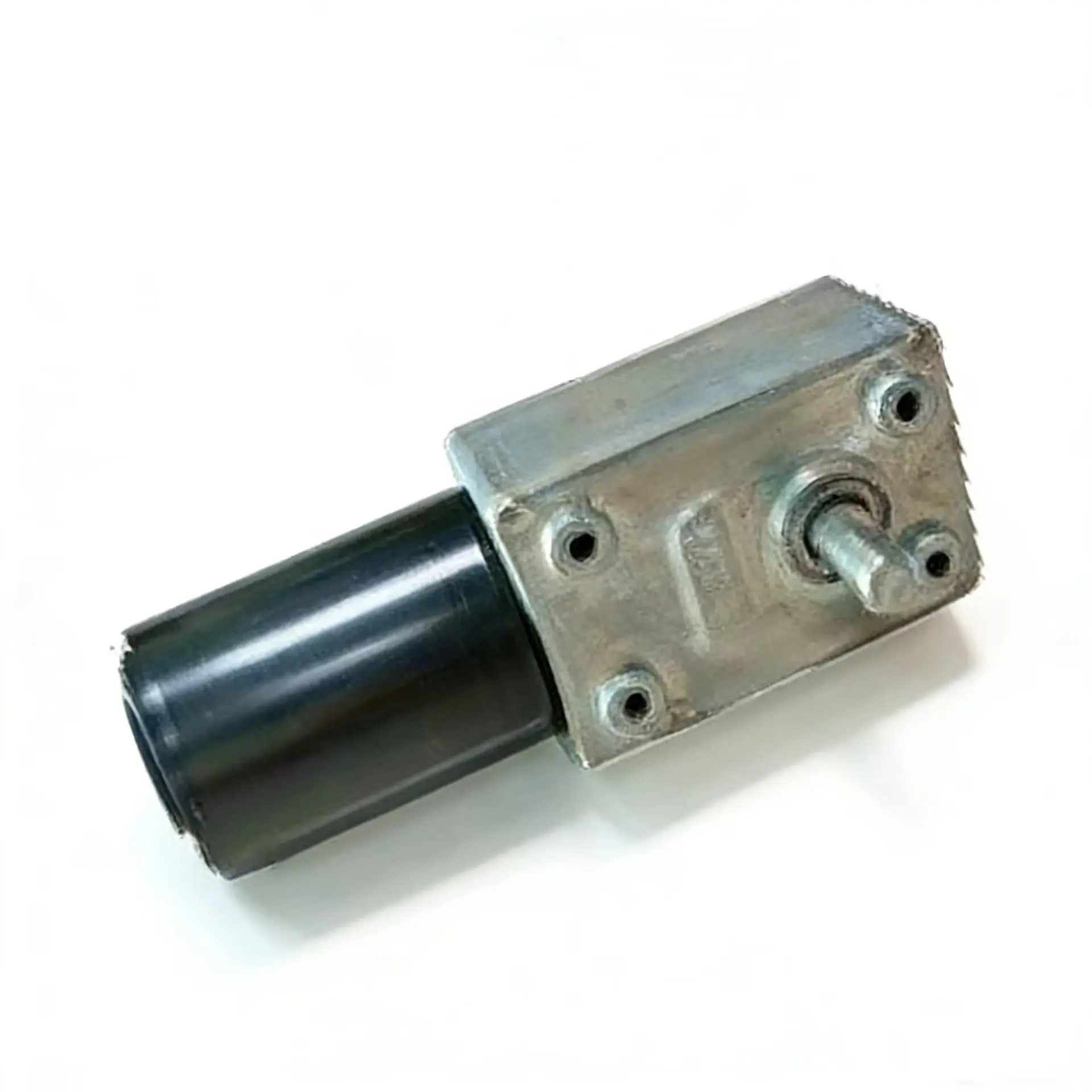

BLDC2838
Ice Maker MotorBlender MotorRobot Pet MotorSmart Toilet Motor

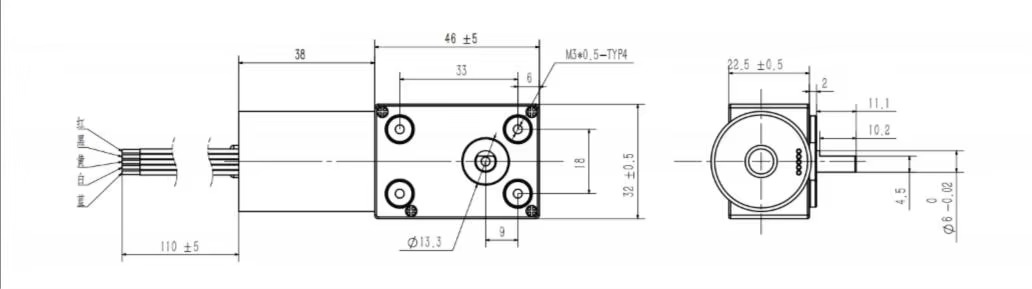

Drawings:
Description
In such cases, BLDC Motor with Worm Gear Box is appropriate for your products:
Your projects require self locking and more running & holding torque.
You are looking to exact position control on your mechanical products.
For projects involving smart homes, such as cleaning robots, mowing robots, electric doors, rolling doors, automatic windows, etc., it is recommended to use BLDC2838 motor with planetary gear box.
Please consider the following requirements before requesting customization: speed, holding torque, space available in your product, or other significant factors.
The following parameters for your reference, we could customize motor for your applications.
Parameters
- Rated VoltageDC 24V
- Rated Power15 W
- Rated Speed30 RPM
- Torque1.6 N.m
- Outer Diameter28 MM
