BL2832M12 Spur Gear

BL2832M12 Spur Gear

Higher torque to size ratio

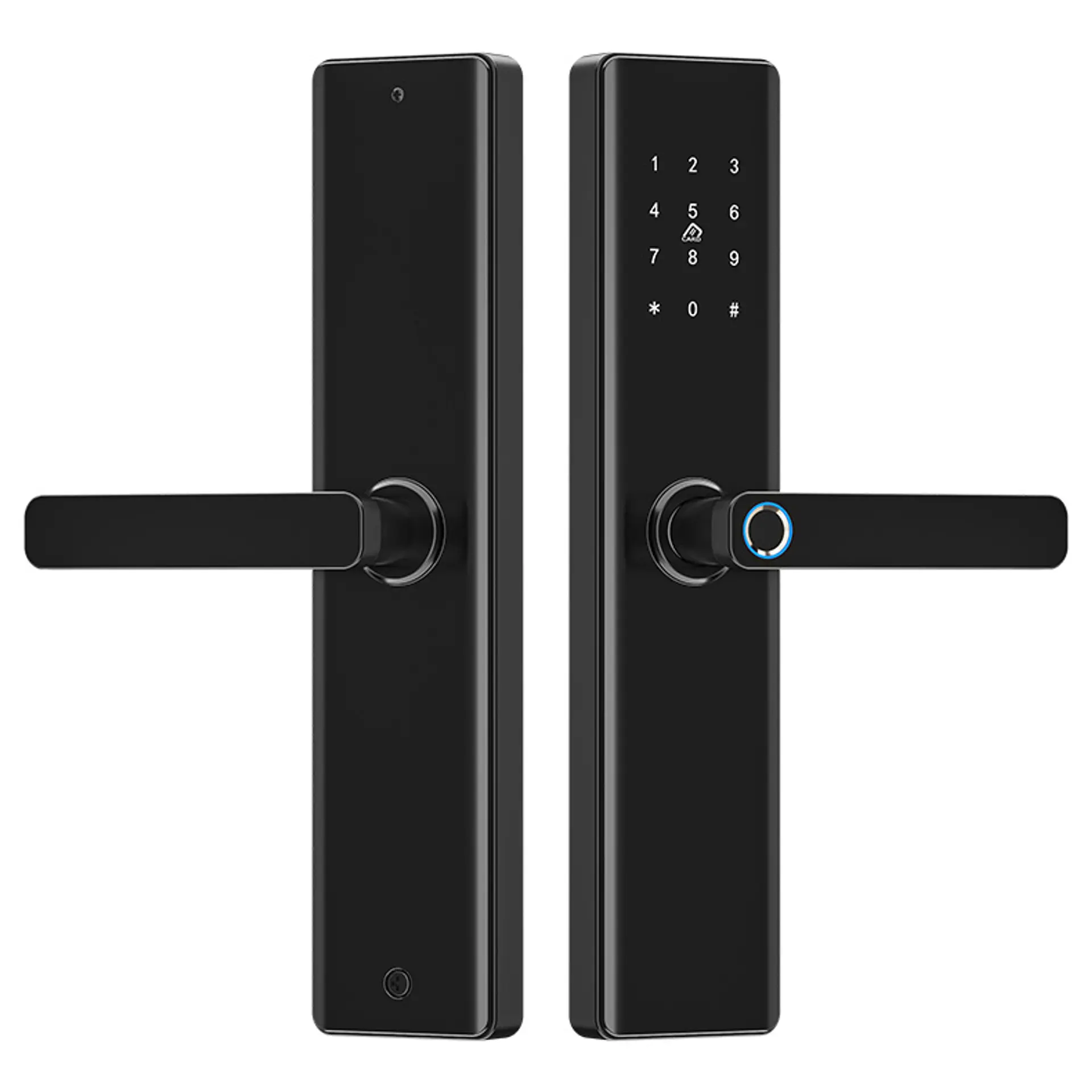

Smart Toilet MotorElectric Door Lock MotorRobot Pet Motor
3c
ul
ce

Drawings:

TG28.pdf

  • Description
  • Parameters
  • Application
  • CSR
  • Support

Description

In such cases, BLDC motors with gear box are for your products: Your projects require self locking and more running & holding torque. You are looking to exact position control on your mechanical products. BLDC motor with gear box is recommended for projects involving smart products and medical equipment, such as door opener, foldable fitness equipment, smart switch, servo motors and etc. Please consider the following requirements before requesting customization: speed, holding torque, space available in your product, or other significant factors. The following parameters for your reference, we could customize motor for your applications.

Parameters

  • Rated Voltage
    12V
  • Rated Current
    ≤0.06A
  • Rated Speed
    28±5% RPM
  • No Load Current
    0.06A MAX
  • No Load Speed
    2800±10% RPM
  • Outer Diameter
    φ28mm
  • Length
    60.8mm
  • Reduction Ratio
    1:100

CSR

CJC MOTOR is an ideal partner for motor industry, in which we are committed to supplying environmentally friendly, high-quality small electric motors.
  • REACh Regulations
    Strict compliance with REACH regulations
    Complied
    REACh Statement
  • EU ROHS Directive
    Strict compliance with the EU ROHS Directive
    Complied
    EU ROHS Declaration
