BL7160M110

BL7160M110

Compact and integrated design and cost effective with the mostly used motor platforms

Inflatable Camping Tents MotorCoffee Grinder Motor
3c
ul
ce

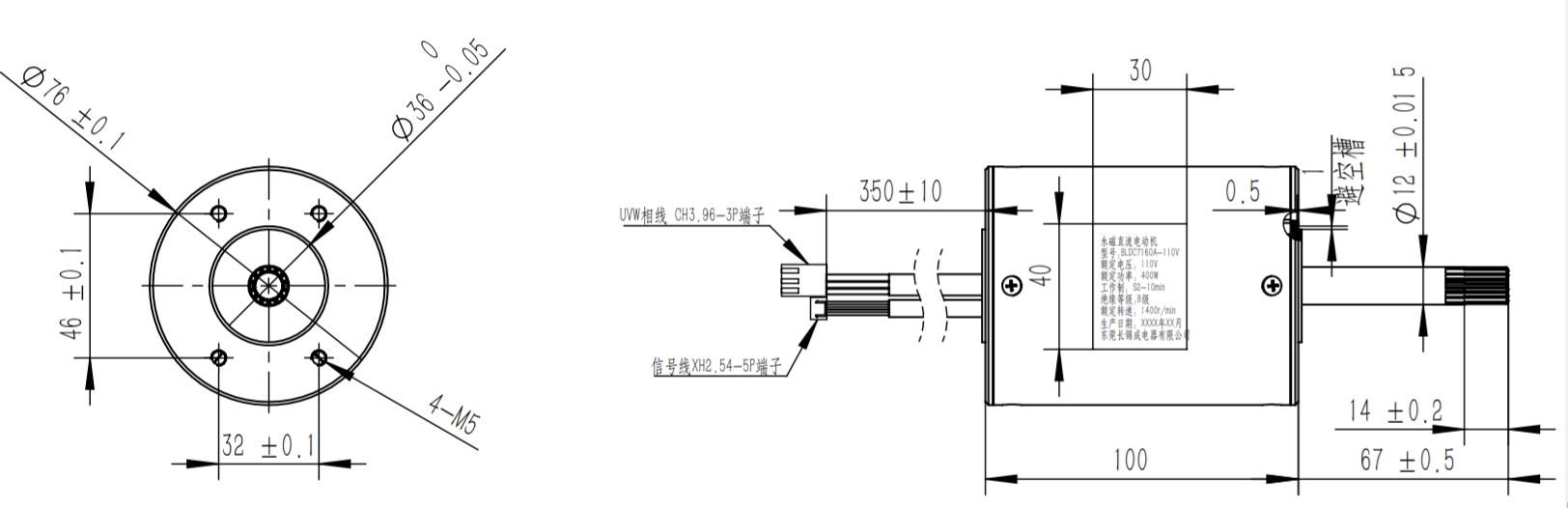

Drawings:


  • Description
  • Parameters
  • Application
  • CSR
  • Support

Description

BL7160M110 is most suitable for coffee machine grinders and camping electric tent, with less noise and longer life. Please consider the following requirements before requesting customization: motor size, controller, motor ratings, gearbox(if any), or other significant factors. The following parameters for your reference, we could customize motor for your application.

Parameters

  • Rated Voltage
    110 V
  • Rated Current
    1.62 A
  • Rated Power
    400 W
  • Rated Speed
    1400 RPM
  • No Load Current
    0.6 A
  • No Load Speed
    1000 RPM
  • Output Power
    300 W
  • Torque
    1.8 N.m
  • Outer Diameter
    71 mm
  • Length
    60 mm
  • With Controller
    Yes
