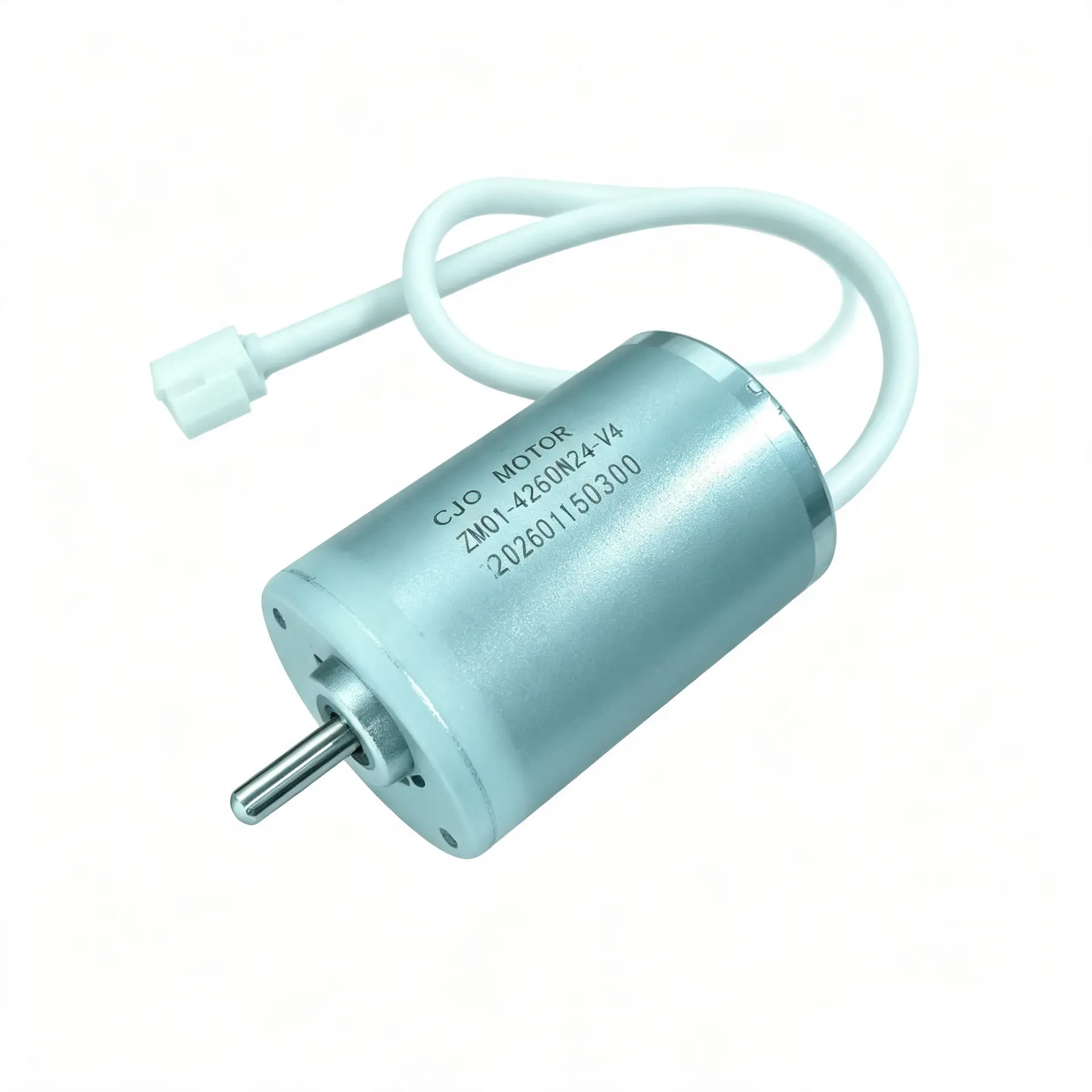

BL4260M24
Compact and integrated design and cost effective with the mostly used motor platforms
Coffee Grinder Motor
Drawings:

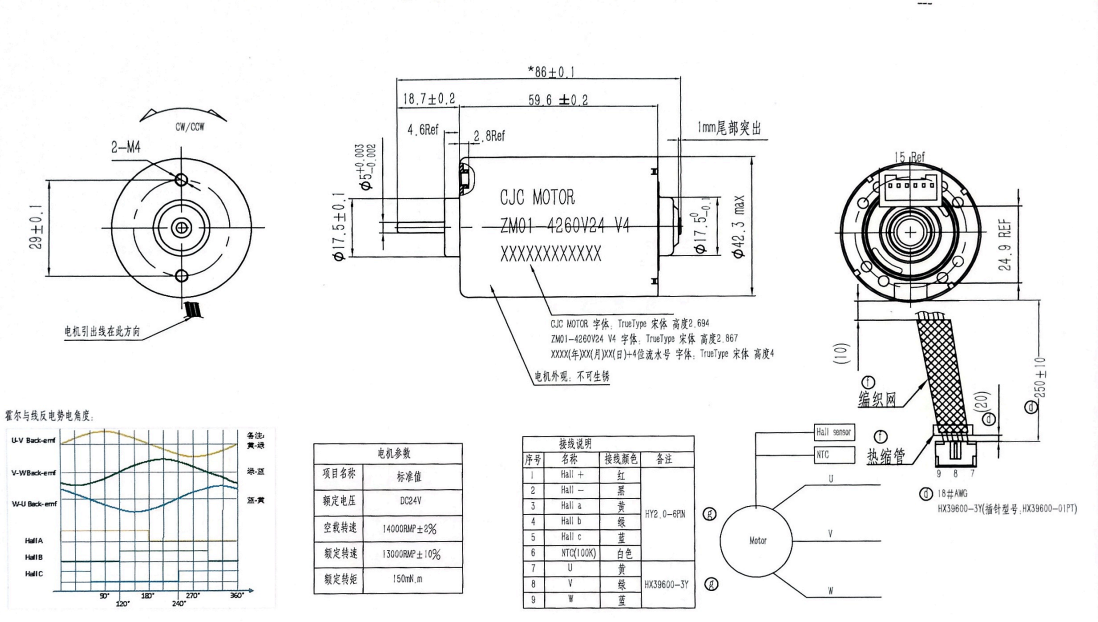

ZM01 外形.png

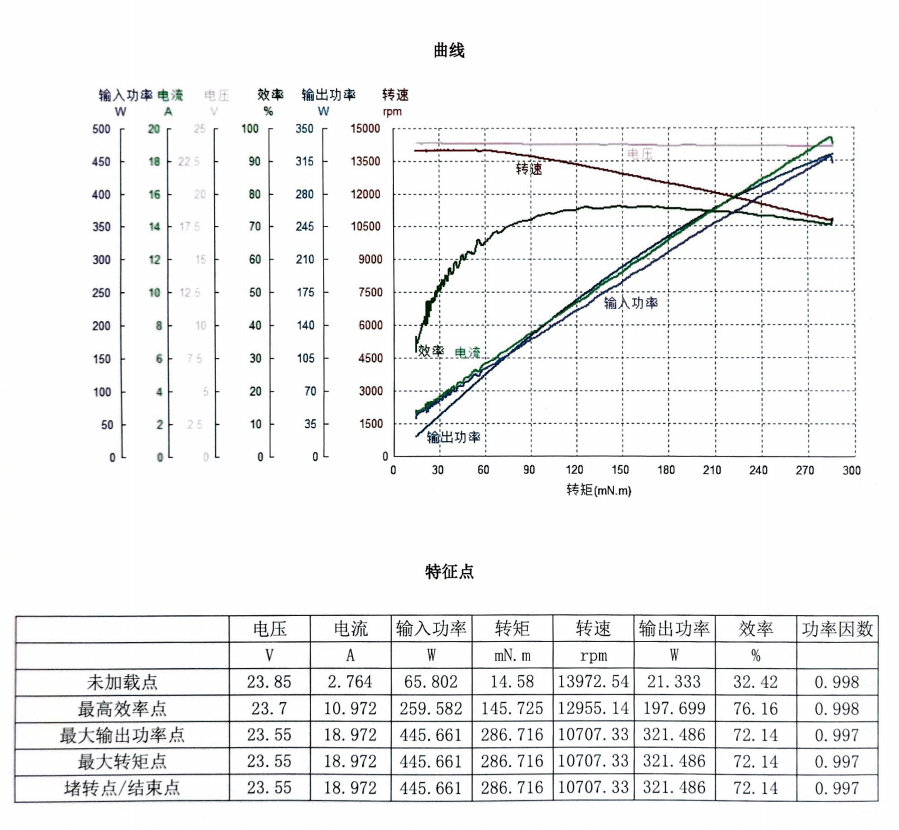

ZM01 性能.png
Description
In such cases, CJC's inner rotor motors are for your products:
Your projects demand a greater cooling effect.
You prefer motors to obtain a high acceleration rate and high system sensitivity.
BL4260M24 is most suitable for oil pump/blower.
Please consider the following requirements before requesting customization: motor size, controller, motor ratings, gearbox(if any), or other significant factors.
The following parameters for your reference, we could customize motor for your applications.
Parameters
- Rated Voltage24 V
- Rated Current11A
- Rated Power200W
- Rated Speed13000 RPM
- No Load Speed14000 RPM
- Torque150mN.m
- Outer Diameter42 MM
- Length86 MM
