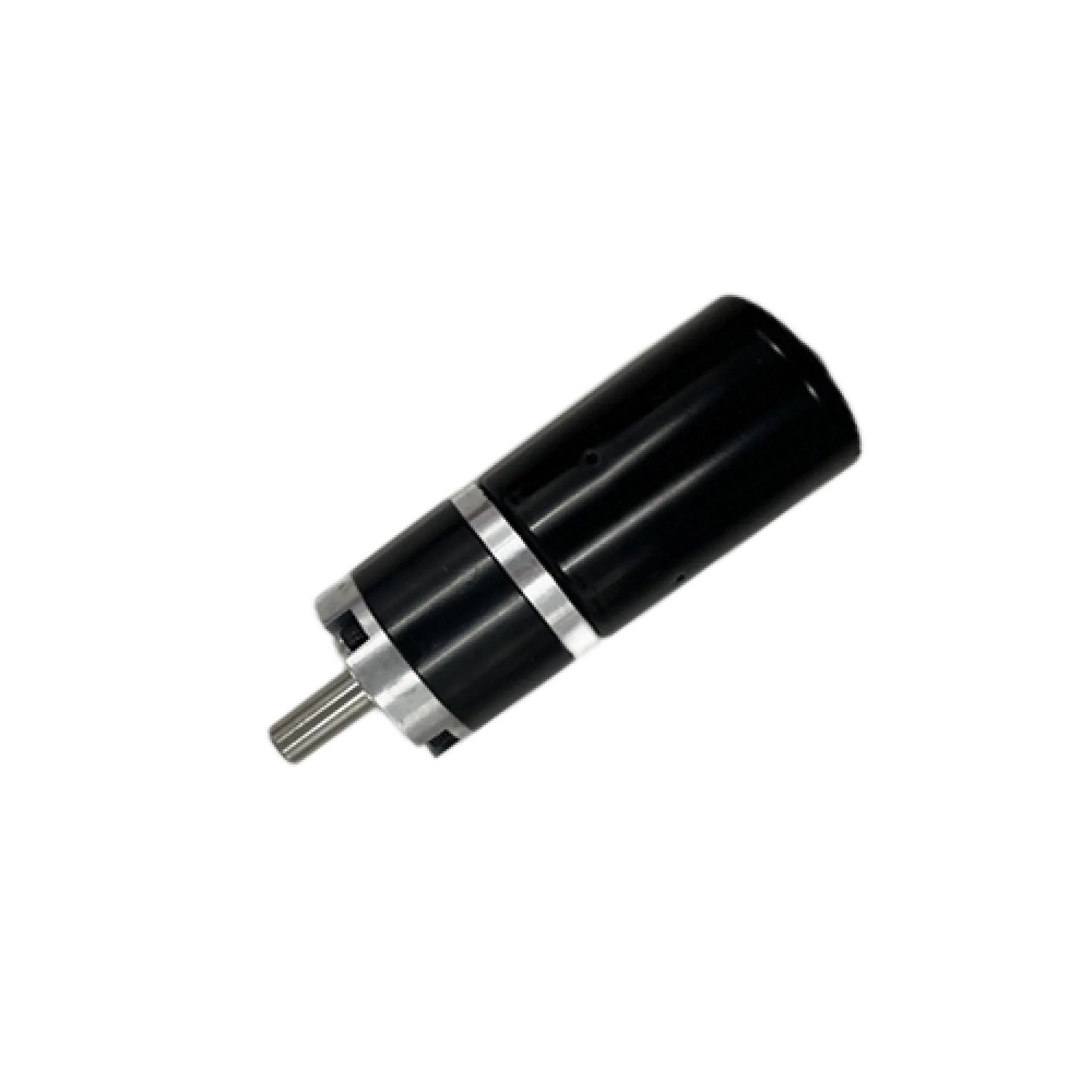

BL42M12R50

BL42M12R50

Higher torque to size ratio

Vending Machine Motor
3c
ul
ce

Drawings:


  • Description
  • Parameters
  • Application
  • CSR
  • Support

Description

In such cases, BLDC Motor with Planetary Gear Box is appropriate for your products: Your projects require self locking and more running & holding torque. You are looking to exact position control on your mechanical products. BL42M12R50 with Planetary Gear Box is recommended for projects involving smart products and medical equipment, such as vending machine, door opener, foldable fitness equipment, smart switch, servo motors and etc. Please consider the following requirements before requesting customization: speed, holding torque, space available in your product, or other significant factors. The following parameters for your reference, we could customize motor for your applications.

Parameters

  • Rated Voltage
    12V
  • Rated Current
    ≤0.2A
  • Rated Speed
    21±5% RPM
  • No Load Current
    0.08A MAX
  • No Load Speed
    1080±5% RPM
  • Outer Diameter
    φ42mm
  • Length
    113mm
  • Reduction Ratio
    1:50

CSR

CJC MOTOR is an ideal partner for motor industry, in which we are committed to supplying environmentally friendly, high-quality small electric motors.
  • REACh Regulations
    Strict compliance with REACH regulations
    Complied
    REACh Statement
  • EU ROHS Directive
    Strict compliance with the EU ROHS Directive
    Complied
    EU ROHS Declaration
