CES 2024: Drone Electric Motors Take Flight

This article dives into the advancements in drone technology, with a focus on electric motors and the latest innovations showcased at CES 2024. Discover how these advancements are shaping the future of drones.

Share
In the shimmering heart of Las Vegas, Nevada, the world's most influential gathering of innovators, visionaries, and tech enthusiasts is set to redefine once again the frontiers of what's possible in CES 2024. CJC will be showcasing innovative drone electric motor at Booth 2114, West Gate Hall.

Look Back to Drone Highlights at CES 2023!

One of the major highlights was the unveiling of Autel’s EVO Max 4T drone. This enterprise drone boasts an impressive 42 minutes of flight time and is equipped with a thermal sensor. It can fly without GPS, making it ideal for remote operations.

Autel also launched two new nests, or docking stations, for its enterprise Dragonfish drone and its consumer EVO drone. The Dragonfish Nest is particularly noteworthy as it’s the first-ever docking station made for an eVTOL (vertical takeoff and landing) drone.

Image credit: https://www.autelpilot.com/blogs/news/best-drone-of-ces-2023-autel-evo-max-4t

Another interesting exhibitor was DroMii, which uses drones and AI software to create detailed road maps. After capturing 4k aerial photos, DroMii’s software detects and removes moving objects from the road to provide a clear picture of road conditions for local governments and navigation systems.

Marine Drone Tech, a South Korea-based drone delivery platform, also caught attention. The company focuses on maritime last-mile logistics by delivering ship supplies by air.

Look Forward to Drone Innovation at CES 2024

The drone industry is soaring, and at the heart of its impressive flight capabilities lies the intricate power system. This critical trio—the electronic speed controller (ESC), brushless motor, and propellers—forms the lifeblood of drone functionality and stability. CJC MOTOR brings innovative bldc drone electric motor platforms to CES 2024! This article explores the key performance and innovations driving the future of drones.

The Heart of the Matter: Brushless DC BLDC Motor

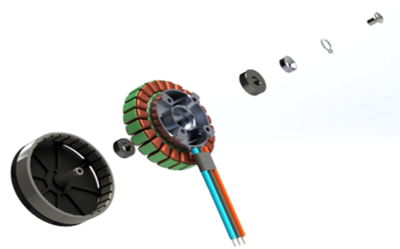

At the epicenter of drone construction lies the brushless motor, a fundamental component ensuring aerial prowess. This brushless dc bldc motor, devoid of brushes and commutators, incorporates bearings, coils, magnets, stator, and end cap, intricately designed to guarantee optimal performance.

Operational Mechanisms

The operational principle of brushless dc bldc motors distinguishes them from their brushed counterparts. By manipulating the current input frequency and waveform, a rotating magnetic field envelops the stator coil, setting the rotor's permanent magnet steel into motion. This ingenious design facilitates seamless motor rotation, a critical factor in drone agility. Understanding this metric is key to choosing the right motor for your needs, whether it's capturing breathtaking aerial footage at CES 2024 or tackling demanding industrial applications.

Advantages of Brushless Motors: A Technological Leap

The prevalence of brushless motors in modern drones can be attributed to their myriad advantages. These lightweight motors, marked by reduced friction, minimal loss, lower heat generation, and prolonged lifespan, have revolutionized the drone landscape. Additionally, their diminished noise levels, smoother operation, and lowered maintenance costs underscore their superiority in the aviation domain.

Decoding the KV Value: A Performance Benchmark

One cannot overlook the significance of the KV value, a pivotal metric characterizing brushless motors. This value serves as a barometer, offering valuable insights into the motor's performance capabilities. Methods such as the Hall effect principle and photoelectric speed measurement techniques are deployed to measure brushless motor speed, ensuring precision and accuracy.

Evolution of Speed Controllers

The evolution from mechanical speed controllers to electronic speed controllers (ESCs) has been transformative. ESCs, specifically tailored for brushless motors, have supplanted their brushed counterparts, enhancing motor speed regulation. This technological leap has played a pivotal role in optimizing drone efficiency, making them indispensable in the ever-evolving world of unmanned aerial vehicles.

CJC MOTOR Drone Electric Motor Solutions with BL6105 and BL5008 Motors

Power in Compact Packages: BL2216 and BL5008 Motor Highlights

Small Size, Small Air Gap, Long Life, High Speed, Light Weight

The BL2216 and BL5008 drone electric motors,unveiled at CES 2024, exceed the expectation for UAV propulsion. Their compact size and minimal air gap ensure optimal efficiency and performance. These motors offer a prolonged lifespan, exceptional high-speed capabilities and lightweight size precision, making them indispensable for UAV applications demanding longevity and reliability.

Outer Rotor Brilliance: Structural Design for Enhanced Torque

Outer Rotor Structure: Maximizing Torque within Limited Space

A standout feature of our motors is the outer rotor structure that delivers unique torque output within a confined volume. This innovation empowers UAVs with great power-to-weight ratios, allowing them to effortlessly tackle diverse applications. The BL6105 and BL5008 motors are engineered to meet the demands of high-performance UAVs, ensuring exceptional torque and maneuverability. This translates to effortless maneuverability, perfect for navigating the bustling exhibition halls of CES 2024 or exploring remote landscapes.

Performance Excellence: Lightweight Heat Dissipation and High Efficiency

Efficient Heat Dissipation: Optimal Temperature Regulation

Efficient heat dissipation is vital for sustained UAV operation. Our motors incorporate lightweight heat dissipation features, guaranteeing optimal temperature regulation even during prolonged usage. This design ensures that the motors remain cool under pressure, maximizing their efficiency and longevity.

Precision in Production: Addressing UAV Motor Process Requirements

Stator Perfection: Multi-Strand Parallel Winding for Power Density

Challenge 1: Power Density and Efficiency in UAV Motors

What to Do:

Addressing the challenge of power density and efficiency in UAV motors involves implementing advanced winding methods. Utilize the multi-strand parallel winding technique to maximize copper usage, ensuring high power density. Employ precision multi-strand winding machines for accurate and reliable winding. Additionally, impregnate the winding to enhance insulation strength and vibration resistance, guaranteeing durability under diverse operating conditions.


Dynamic Balance Precision: Less Than 5mg Imbalance

Challenge 2: Motor Dynamic Balance for Stable UAV Operation

What to Do:

Overcoming the challenge of motor dynamic balance in UAVs demands meticulous attention to the rotor assembly process. Implement the glue balance method to achieve a dynamic imbalance of less than 5mg, ensuring unrivaled stability during UAV operation. Utilize bearing inner ring clearance fit and high-strength glue in assembly. Employ torque wrenches to meticulously control the tightening screws, achieving consistent preload. This precision guarantees stable and noise-free motor operation, enhancing longevity and overall UAV performance.

Rotor Balance Mastery: Unrivaled Stability in Motion

Assembly Expertise: Controlled Bearing Preload for Stability


Controlled Bearing Preload: Ensuring Stable Operation

Challenge3: Achieving Stable Motor Operation through Controlled Bearing Preload

What to Do:

To address the challenge of achieving stable motor operation, employ meticulous assembly processes. Utilize a bearing inner ring clearance fit and high-strength glue during assembly. Implement torque wrenches to precisely control the tightening screws, ensuring consistent preload. By doing so, you guarantee stable and noise-free motor operation, preventing problems associated with insufficient or excessive preload. This approach significantly enhances the motor's longevity and performance, meeting the demand for reliability in UAV applications.

Elevating Drone Dynamics with CJC MOTOR at CES 2024, delving into the power dynamics of drone market unveils a world of innovation and precision engineering. To learn more about our products or services, please click the "Contact Us" button on the right below.
