HC9540M110

HC9540M110

Good power to weight ratio

3c
ul
ce

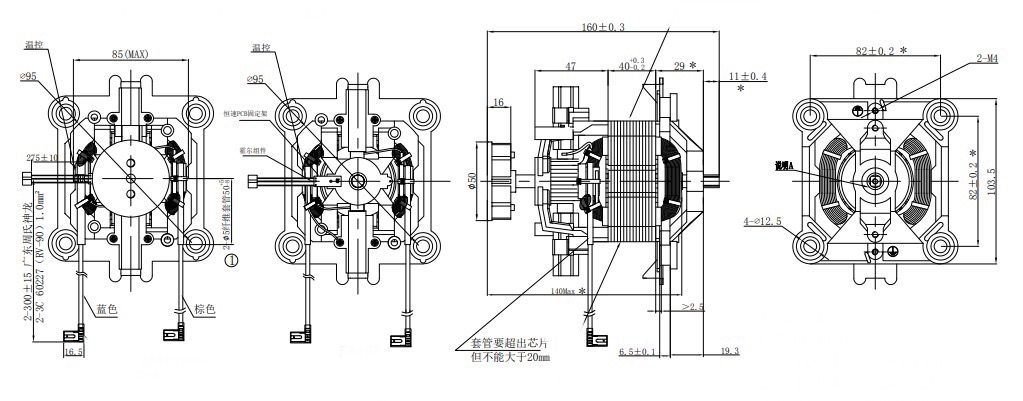

Drawings:

HC9540.pdf

  • Description
  • Parameters
  • Application
  • CSR
  • Support

Description

In such cases, universal AC motors are for your products: Your projects require high performance & high torque, and comparably high speed. HC9540M110 is recommended for home appliance projects involving blenders, juicers, mixers, meat grinders for household, commercial, and industrial use. Please keep the following requirements in mind before requesting customization: power, starting torque, efficiency, rated torque, rated speed or other significant factors. The following parameters for your reference, we could customize motor for your applications.

Parameters

  • Rated Voltage
    110V
  • Rated Current
    11.5±10%A
  • Rated Power
    1350±10%W
  • Rated Speed
    17000±10%RPM
  • No Load Current
    5.45±10%A
  • No Load Power
    600±10%W
  • No Load Speed
    28500±10%RPM
  • Output Power
    950±10%W
  • Torque
    530mN.m
  • Outer Diameter
    95mm
  • Length
    40mm

Application

CSR

CJC MOTOR is an ideal partner for motor industry, in which we are committed to supplying environmentally friendly, high-quality small electric motors.
  • REACh Regulations
    Strict compliance with REACH regulations
    Complied
    REACh Statement
  • EU ROHS Directive
    Strict compliance with the EU ROHS Directive
    Complied
    EU ROHS Declaration
