HC8920M120

HC8920M120

Good power to weight ratio

Food Processor MotorJuicer Motor
3c
ul
ce

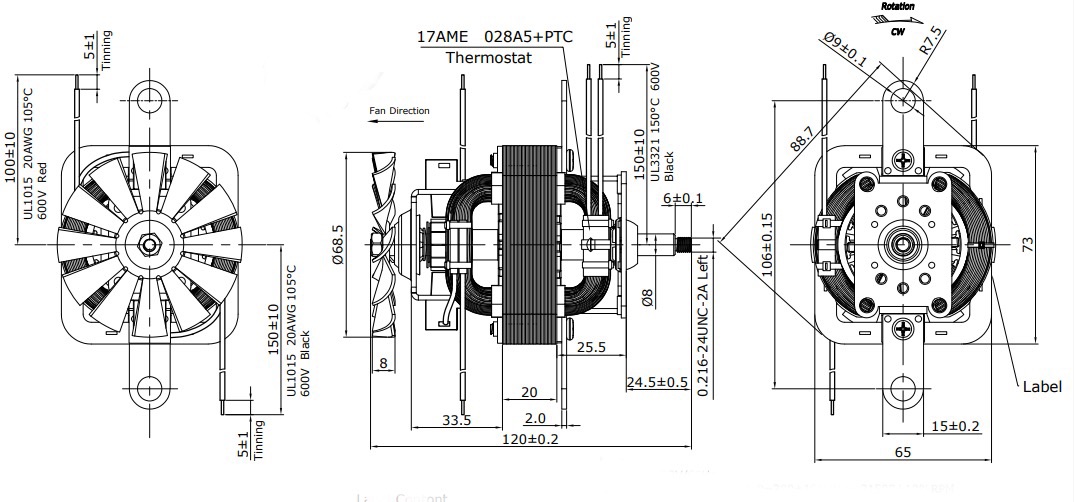

Drawings:


  • Description
  • Parameters
  • Application
  • CSR
  • Support

Description

In such cases, universal AC motors are for your products: Your projects require high performance & high torque, and comparably high speed. HC8920M120 is recommended for home appliance projects involving blenders, juicers, mixers, meat grinders for household, commercial, and industrial use. Please keep the following requirements in mind before requesting customization: power, starting torque, efficiency, rated torque, rated speed or other significant factors. The following parameters for your reference, we could customize motor for your applications.

Parameters

  • Rated Voltage
    120V
  • Rated Current
    4.7±10%A
  • Rated Power
    550±10%W
  • Rated Speed
    14500±10%RPM
  • No Load Current
    2.5±15%A
  • No Load Power
    280±15%W
  • No Load Speed
    21500±15%RPM
  • Torque
    150mN.m
  • Outer Diameter
    89mm
  • Length
    20mm

CSR

CJC-Motor is an ideal partner for industry, in which we are committed to supplying environmentally friendly, high-quality micro motors.
  • REACh Regulations
    Strict compliance with REACH regulations
    Complied
    REACh Statement
  • EU ROHS Directive
    Strict compliance with the EU ROHS Directive
    Complied
    EU ROHS Declaration
