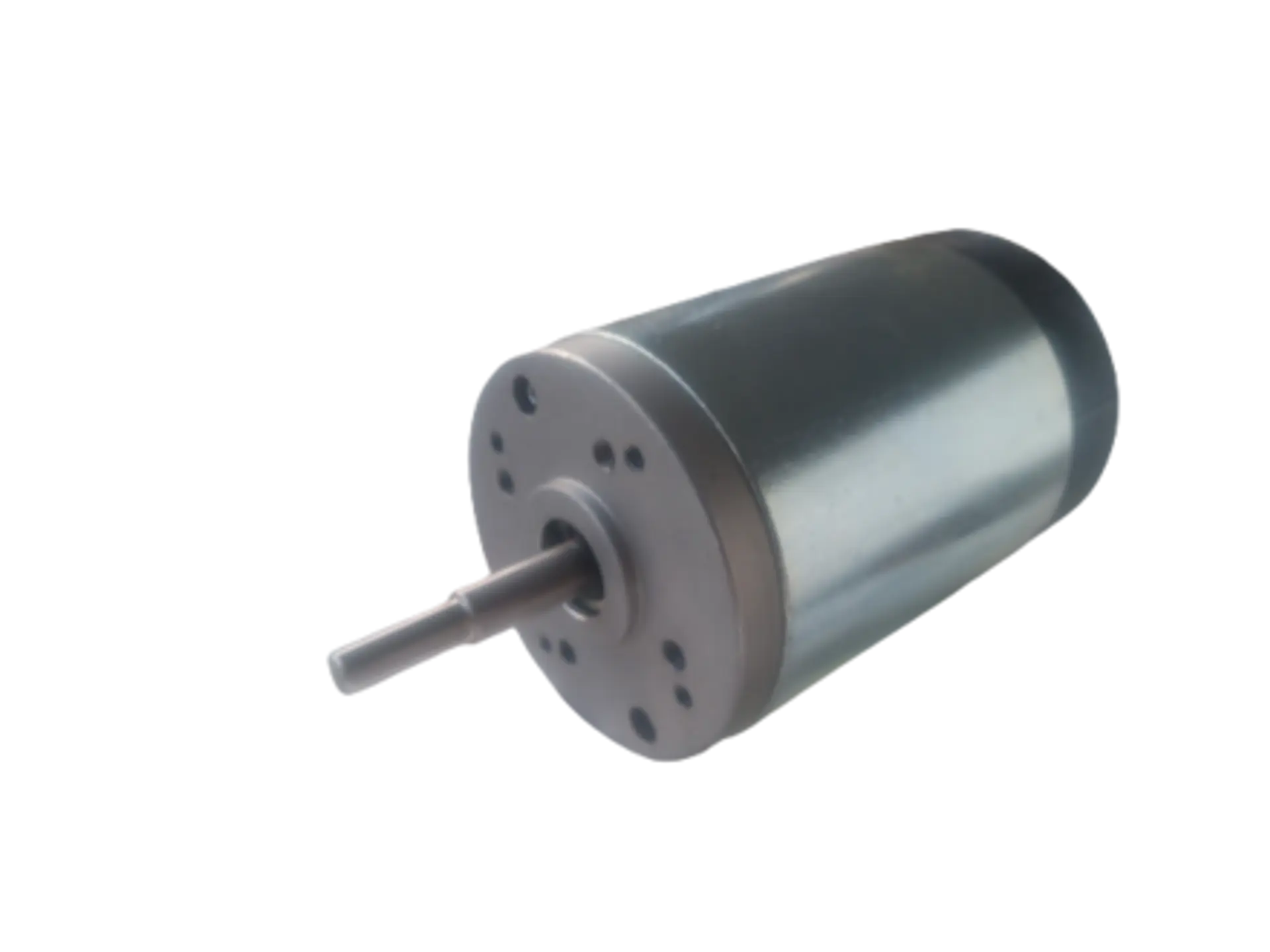

DC4440M26.5

DC4440M26.5

More economical, more space-saved, more sustainable output power, and has less speed required (compare to AC universal motor)

Floor Cleaning Robot Motor
3c
ul
ce

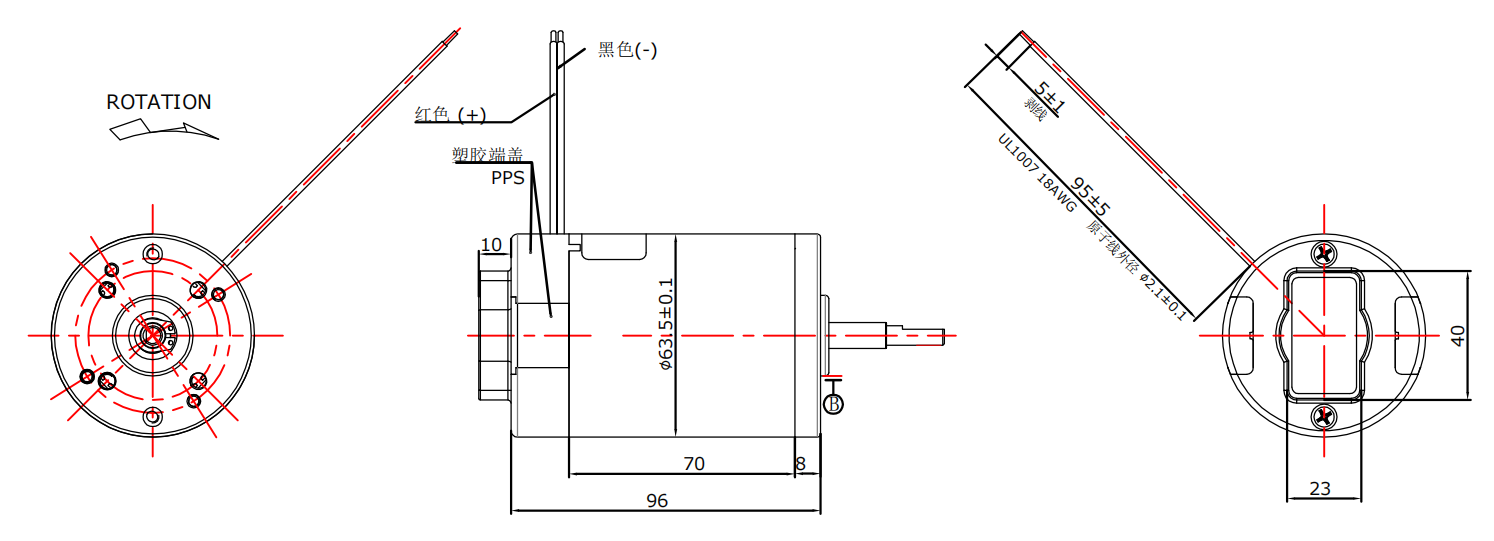

Drawings:


  • Description
  • Parameters
  • Application
  • CSR
  • Support

Description

In such cases, PMDC motors are appropriate for your products: Your projects require smaller size DC motors. Your products do not need very effective control. You have more requirements for size and capacity. DC4440M26.5 is recommended for household appliances and smart home projects, including mixers, juicers, cleaning robots, swimming pool cleaning robots and robot pumps. Can be customized according to different usage scenarios (household, commercial and industrial). Please keep the following requirements in mind before requesting customization: input power, motor size, torque and speed, duty cycle, or other significant factors.

Parameters

  • Rated Voltage
    26.5 V
  • Rated Speed
    2600 RPM
  • No Load Speed
    3300 RPM
  • Output Power
    5 W
  • Outer Diameter
    63 mm
  • Length
    70 mm

Application

CSR

CJC MOTOR is an ideal partner for motor industry, in which we are committed to supplying environmentally friendly, high-quality small electric motors.
  • REACh Regulations
    Strict compliance with REACH regulations
    Complied
    REACh Statement
  • EU ROHS Directive
    Strict compliance with the EU ROHS Directive
    Complied
    EU ROHS Declaration
