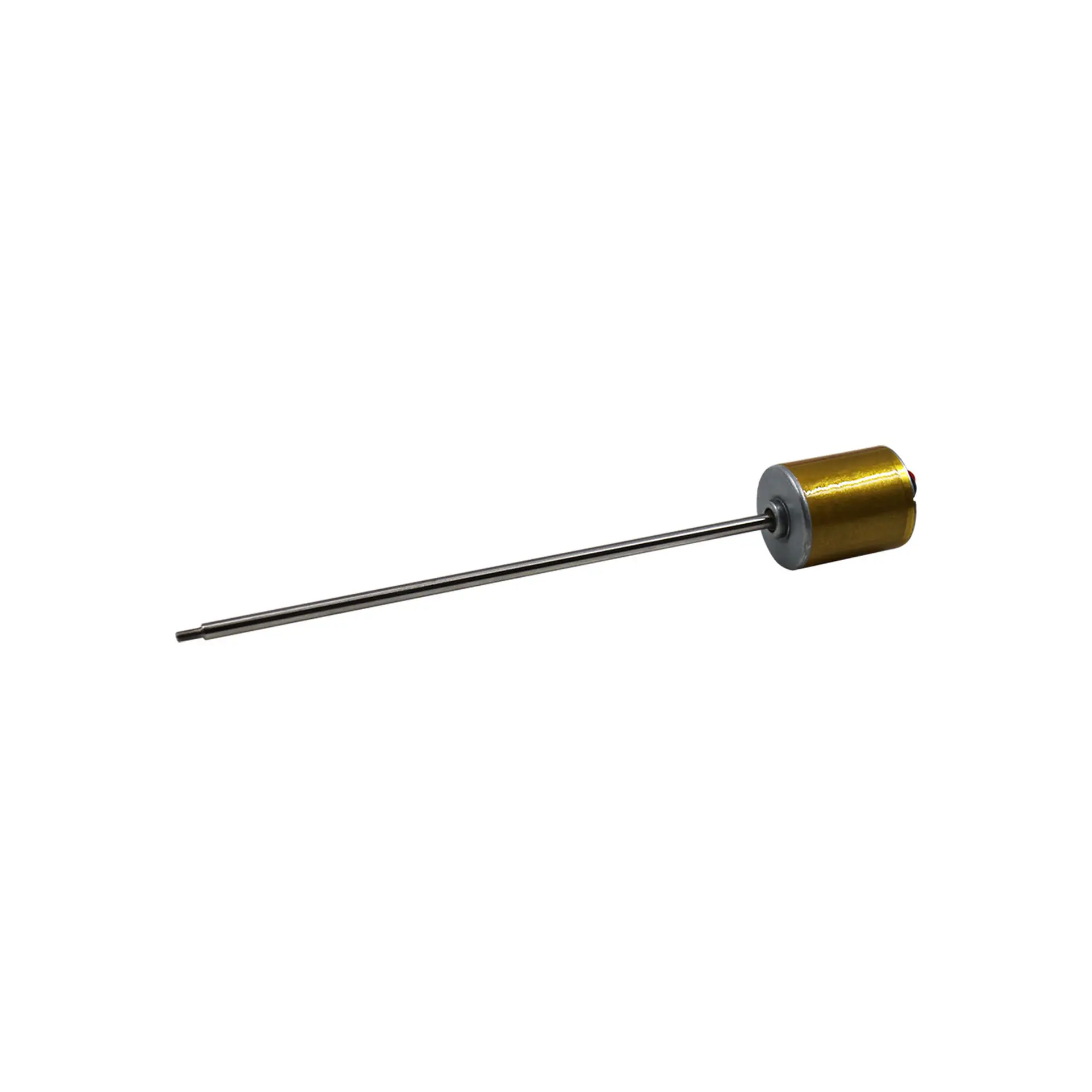

BL2832M12V

BL2832M12V

Compact and integrated design and cost effective with the mostly used motor platforms

3c
ul
ce

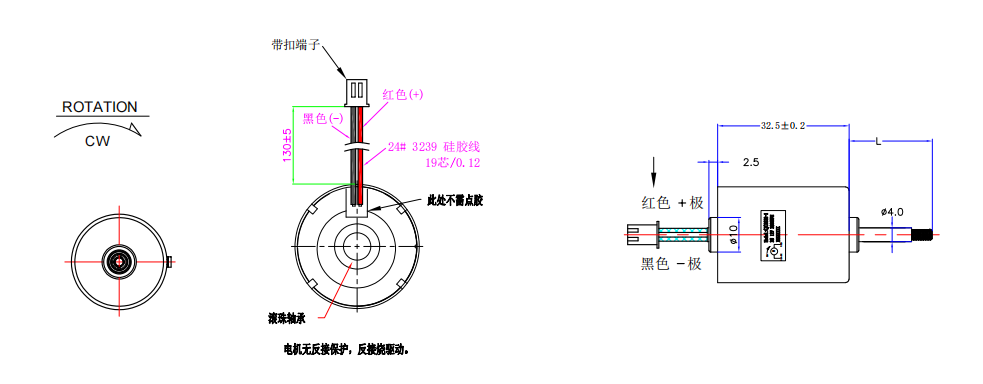

Drawings:


  • Description
  • Parameters
  • Application
  • CSR
  • Support

Description

In such cases, CJC's inner rotor motors are for your products: Your projects demand a greater cooling effect. You prefer motors to obtain a high acceleration rate and high system sensitivity. BL5760M220 is most suitable for locomotives, residential Fans, and other high-speed horizontal installation equipment with a quick start, such as blowers, high speed centrifuge, vending machines, power tools, and other fields. Please consider the following requirements before requesting customization: motor size, controller, motor ratings, gearbox(if any), or other significant factors. The following parameters for your reference, we could customize motor for your applications.

Parameters

  • Rated Voltage
    12V
  • Rated Current
    0.23A
  • Rated Power
    3W
  • Rated Speed
    2500RPM
  • No Load Current
    0.1A
  • No Load Speed
    3000RPM
  • Torque
    5mN.M
  • Outer Diameter
    φ28MM
  • Length
    32MM
  • With Controller
    YES

Application

CSR

CJC MOTOR is an ideal partner for motor industry, in which we are committed to supplying environmentally friendly, high-quality small electric motors.
  • REACh Regulations
    Strict compliance with REACH regulations
    Complied
    REACh Statement
  • EU ROHS Directive
    Strict compliance with the EU ROHS Directive
    Complied
    EU ROHS Declaration
