Gearbox motor(speed reducer)plays a pivotal role in various mechanical systems, enhancing efficiency and enabling precise control. Their primary functions are to reduce speed and increase torque. In this article, we will delve into the mechanics behind these functions and explore the commonly used gearbox types, shedding light on their applications and advantages.

Understanding Gear Reduction Box in Gearbox Motor

What is Gear Reduction Box?

Gear reduction box, in the context of gearbox motor, refers to the process of decreasing the rotational speed of an input shaft, usually connected to an electric motor, and transmitting the reduced speed to an output shaft. This reduction in speed is essential in numerous applications where high-speed rotation is impractical or undesirable.

How Does it Work?

Gear reduction box is achieved through a series of gears within the motor reducer. By employing different gear ratios, the input speed is effectively reduced before reaching the output shaft. This reduction is crucial for applications like conveyor belts, where a slower, controlled movement is necessary.

Gear Reduction Box Boosting Torque of Motor

The Significance of Torque

Torque is the rotational force generated by a motor or engine. It is essential in applications that require the ability to operate heavy duty or overcome resistance. Gear reduction box in speed reducer plays a vital role in increasing torque to meet these demands.

Mechanism Behind Torque Increase

Gear reduction boxes use gear systems to increase torque. By decreasing the rotational speed on the output side while maintaining power, the torque is proportionally amplified. This torque boost is invaluable in applications like winches and elevators.

Close-up to Four Gearbox Types

There are various types of gearboxes for gearbox motors, each with its own advantages and applications. Let's explore some more common methods:

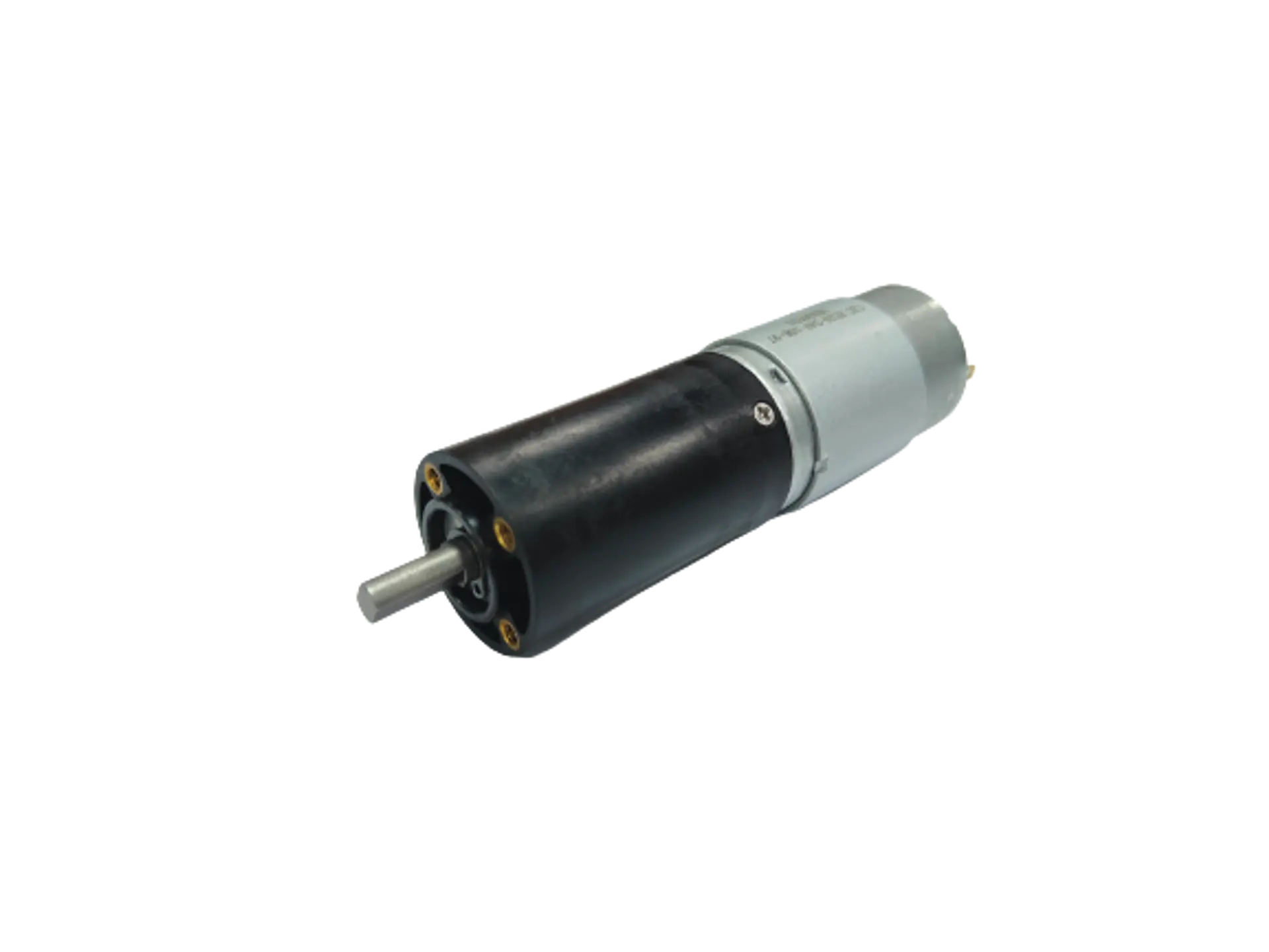

Planetary Gear Box

Planetary gearbox is known for their compact design and high efficiency. It is often used in machines and automation systems where space is limited, and precise motion control is crucial.

Explosion Map: Motor with Planetary Gear Box

Planetary Gear Box Motor Part Exlpstion

1-Electric Motor Mounting Plate


3-Fastening Screw

4-Internal Gear Ring

5-Planetary Carrier

6-Sun Gear(Center Gear)

7-Planetary Gear (Planet Gear)

8-Planetary Gear Shaft

9-Reducer Output Shaft

10-Reducer Front Cover

11-Roller Bearing

Worm Gearbox

Worm gear box is precise mechanical devices characterized by fewer teeth, helical worm threads, and gears meshing with the worm. It is commonly used in applications requiring high torque and low-speed output, with the following features:

Worm Gearbox


1. High reduction ratio: Worm gearbox can provide very high reduction ratios, making them suitable for tasks requiring significant torque.

2. Compact design: Because the transmission components work in the same plane, worm gearbox can be easily installed in limited spaces.

3. Right-angle drive: This type of gear reduction box can achieve right-angle drive between two shafts, suitable for applications with 90-degree turns.



1. Low efficiency: Worm gearbox has relatively low efficiency due to friction losses in the transmission, requiring additional power to overcome.

2. Complex manufacturing: Manufacturing worm gearbox requires highly precise processes, leading to relatively high costs.

3. Not suitable for high-speed applications: Due to low efficiency, worm gearboxes are not suitable for high-speed rotation scenarios.

Potential Solutions: - Use high-quality materials and precise manufacturing processes to improve efficiency. - Combine with lubrication systems to reduce friction losses.

Tower Gearbox

Tower gearbox is the gearbox types that is widely used in industrial applications. It features an all-metal gear design with large contact areas, smooth transmission, high torque, wear resistance, and longer lifespan, with the following features:

Tower Gearbox


1. High efficiency: The design of tower gearbox makes them highly efficient, effectively transmitting power.

2. Strong durability: The all-metal gear design gives them excellent wear resistance and longer lifespans, reducing maintenance requirements.

3. Versatile applications: Due to their reliability and high torque transmission capacity, tower gearboxes are suitable for various industrial applications.


1. Relatively large size: Due to the all-metal gear design, tower gearboxes are typically larger than other reducers, potentially requiring more space.

2. Higher manufacturing costs: Precise manufacturing and high-quality material requirements contribute to higher manufacturing costs.

Potential Solutions: - Choose appropriate sizes to fit space constraints for specific applications. - Use high-quality gear materials to enhance durability.

Helical Gear Box (Power Tool)

Helical gear box is often used in electric tools like drills and saws because they can provide high torque and efficiency. It is reduction devices characterized by the meshing of helical gears to achieve reduction. Here are their features:

Helical Gearbox


1. High efficiency: Helical gear box typically has high efficiency due to their design that reduces friction losses.

2. Compact design: This reducer's design can achieve a compact structure suitable for limited spaces.

3. Precise transmission: The design of helical gears ensures precision and smooth torque transmission.


1. Complex manufacturing: Manufacturing helical gear reducers requires high-precision processes, leading to higher costs.

2. Limited application scope: Due to their design characteristics, helical gear reducers may not be suitable for all types of applications.

Potential Solutions: - Use precision manufacturing processes to ensure high-quality helical gear reducers. - Select appropriate gear types and reduction ratios to meet specific application requirements.

In next article, we'll take a closer look at the fascinating intricacies of gear transmission of various gearbox types, dissecting key aspects that include involute cylindrical gear drives, bevel gear transmissions, worm drives, and gear trains.
